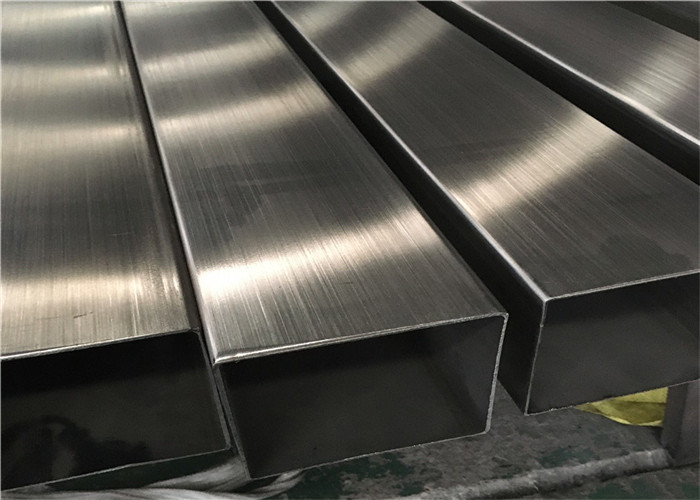

Hot Selling AISI 201 304 304L 316 316L 321 310S Mirror Reflection Seamless Stainless Steel Pipe Tube
| Material | 410 430 Stainless Steel |
| Shape | Round / Square |
| Production Standards | ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
| Outer Diameter | 16mm - 2000mm ; |
| Thickness | 0.8mm - 20 mm ; |
| Length | 6 Meters - 18.3 Meters ; As customers' request ; |
| Tolerance | According to the Standard , +/-10% Commonly ; |
| Surface Treatment | 180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
| Application | Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
| Test | Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
| Design | OEM / ODM / Customized |
| Certificate | ISO9001 ; ISO14001; ISO 18001; TUV ;
|
Chemical composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Products dimension toerance:
| Dimension Tolerance Table |
| Standard | Outside diameter(mm) | Thickness(mm) | Length(mm) |
| ASTM A312 | ≤48.26 | +0.40 -0.80 | +unspecified -12.50% | Definite cut lenght
+6.40
-0 |
| | >48.26~114.30 | +0.80 -0.80 | | |
| | >114.30~219.08 | +1.60 -0.80 | | |
| | >219.08~457.20 | +2.40 -0.80 | | |
| | >457~660 | +3.20/ -0.80 | | |
| | >660~864 | +4.00/ -0.80 | | |
| | >864~1219 | +4.48/ -0.80 | | |
| EN 10217-7 | D1±1.50% with ±0.75mm(min)
D2±1.00% with ±0.50mm(min)
D3±1.75% with ±0.30mm(min)
D4±0.50% with ±0.10mm(min)
EN ISO 1127 | T1±15.00% with ±0.60mm(min)
T2±12.5% with ±0.40mm(min)
T3±10.00% with ±0.20mm(min)
T4±7.50% with ±0.15mm(min)
T5±5.00% with ±0.10mm(min)
EN ISO 1127 | ≤6000:
+5.00
-0
6000~12000:
+10.00
-0 |
Our Advantages:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation in every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
Q:What is stainless steel pipe used for?
Stainless steel pipe is primarily used in piping systems for the transport of fluids or gases.
We manufacture steel pipe from a steel alloy containing nickel as well as chromium,
which give stainless steel its corrosion-resistant properties.
Q:Is stainless steel pipe cheaper than copper?
Copper is often more expensive than that of stainless steel.
This may sometimes change based on the current market value,
but you should expect to pay on avergage about 25% more for copper.
Maintenace of copper is a bit more time consuming if you want to maintain its finish.
Q:Can stainless steel pipe be used for potable water?
Stainless Steel Pipes
Stainless steel is corrosion resistant. They are ductile, can handle high flow rates, and are not hard to bend and cut.
More importantly, the biochemical structure of stainless steel offers the best hygiene,
making it a better choice for drinking water.
Q:What is 304 stainless steel pipe?
Alloy 304 is an austenitic alloy, which is made up major constituents of nickel and chromium.
The Stainless Steel 304 Pipe/ Tube is designed with high corrosion and oxidation resistance properties.
These alloys have excellent formation as well as welding properties.
Q:Is 304 or 316 stainless steel stronger?
There is little difference between alloys when it comes to strength,
but corrosion resistance is where the 316 truly surpasses the 304.
