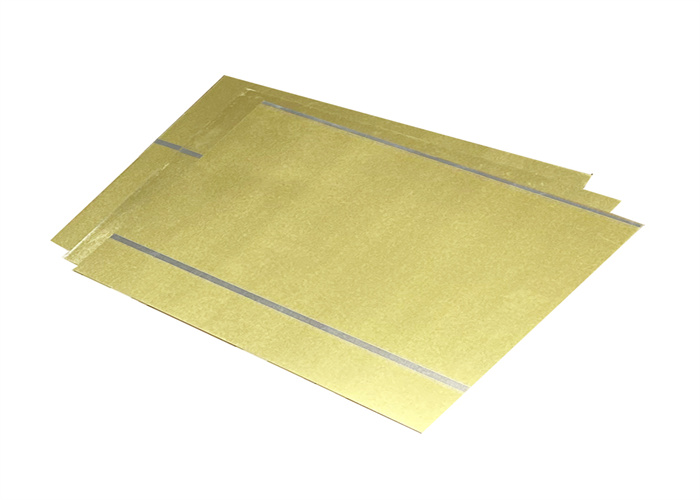

ETP Electrolytic Steel Tinplate Gold Colour Printed Sheet For Making Metal Packaging
Product Description
Tinplate has constantly taken advantage of dramatic improvements, especially over the past decades.
Improvements of the steel production processes (lower melting residuals and better inclusion cleanliness, switch from ingots to continuous casting, good temperature controls during hot rolling, high precision cold rolling). Improvements of the coating process (hot dip tinning replaced by electro tinning to reduce the thickness of the tin layer). Improvements of lacquers to increase the corrosion resistance, switch from soldering to electric welding for the can bodies.
Product details
| Product Name | Metal packing T3 T4 5.6/2.8 tin coating Tin plate/Electrolytic Tinplate /ETP tin coating tinplate |
| Standard | JIS |
| Material | MR |
| Grade | Prime |
| Annealing | BA/ CA |
| Thickness | 0.14-1.2mm |
| Width | As customer required |
| Temper | T1, T2, T3, T4, T5, DR-7m, DR-8, DR-8m |
| Coating(g/m2) | 1.1/1.1 2.0/2.0 2.8/2.8 |
| Surface Finish | Stone, Bright, Sliver, Matte |
| Packaging | Standard export packing or according to customer's requirements. |
| Payment | T/T or L/C |
Mechanical Properties
| Temper Grade | Hardness(HR30Tm) | Yield Strength(MPa) |
| T-1 | 49±3 | 330 |
| T-2 | 53±3 | 350 |
| T-3 | 57±3 | 370 |
| T-4 | 61±3 | 415 |
| T-5 | 65±3 | 450 |
| T-6 | 70±3 | 530 |
| DR-7M | 71±5 | 520 |
| DR-8 | 73±5 | 550 |
| DR-8M | 73±5 | 580 |
| DR-9 | 76±5 | 620 |
| DR-9M | 77±5 | 660 |
| DR-10 | 80±5 | 690 |
Packing&Delivery

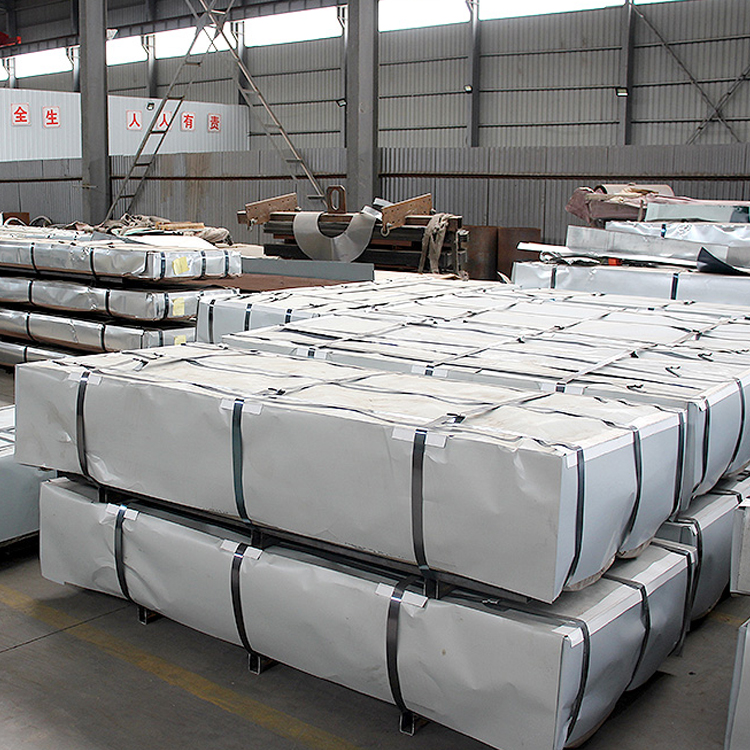

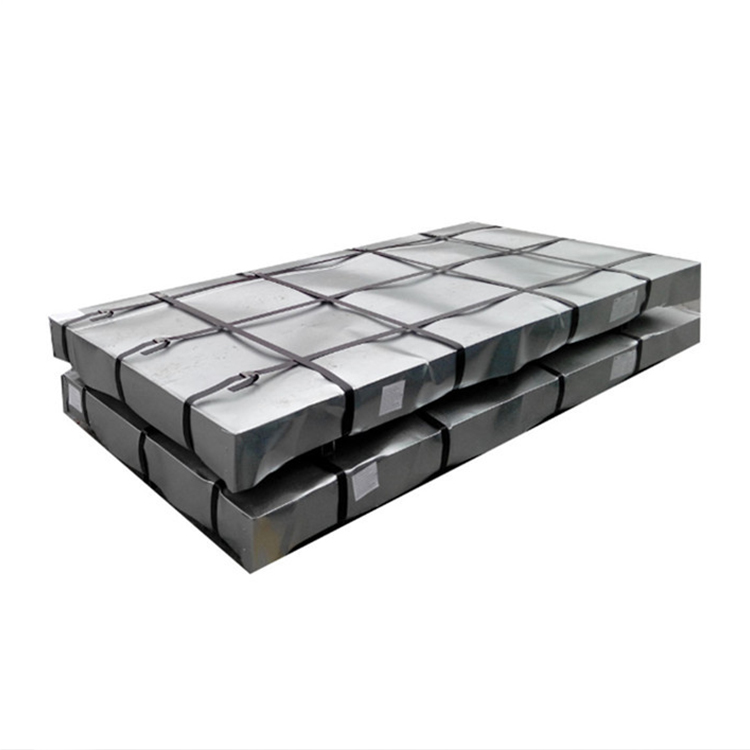

Packing method: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve or customized.
Delivery cycle:Complete the delivery within 7-15 days after your payment.
About us
Shandong Huijian Metal Materials Co., Ltd. is a new modern private enterprise integrating R&D, production and export. The company is located in Liaocheng, Shandong, a national excellent city known as (Jiangbei Water City), with a registered capital of 60 million yuan, covering an area of more than 100 acres, a construction area of 20,000 square meters, and more than 100 employees. The company has advanced production equipment and Mature technology, but also has a high-quality professional management and technical personnel team. The company has passed the international quality management system ISO9001: 2000 certification.
FAQ
1. What is tin plate used for?
Tinplate is used for making all types of containers such as food cans, beverage cans, 18-liter cans, and artistic cans. Its applications are not limited to containers; recently, tinplate has also been used for making electrical machinery parts and many other products.
2. Does tin plated steel rust?
As long as the tin coating in the interior of the can is intact, the tinplate will keep acid foods from reaching the steel frame of the can so it does not rust.
3. Is tin plating food safe?
Tin Plating is used extensively in the food and electronic industries. It is safe and non-toxic, offers a first-rate corrosion resistance and is pliable with low porosity.
4. How is tin plating done?
Tinplate made via hot-dipped tin plating is made by cold rolling steel or iron, pickling to remove any scale, annealing to remove any strain hardening, and then coating it with a thin layer of tin. Originally this was done by producing individual or small packs of plates, which became known as the pack mill process.
